The TCA-1.3 is easy to use due to its compact size, its simple installation and its user-friendly software.It offers precision detail with perfect image and colour quality. The TCA-1.3 comes with the free Tsview application with flexible operation and powerful measuring function.

Imager

• Sensor:- 1/2 (Micron MT9M001)
• Colour Filter:- RGB, 24 bit
• Pixels:- 1280 x 1024 (1.3MP)
• Pixel Size:- 5.2 x 5.2 microns
• Dynamic Range:- >60 dB
• Exposure Time:- 0.1 millisecond to 1.2 second
• Exposure Mode:- Automatic, Manual
• White Balance:- Automatic, Manual
• Parameters:- Brightness, Saturation, Gamma
• Shutter:- Electronic rolling shutter

Computer

• Data Interface:-480 MB/s high-speed USB2.0
• Cable:-Build in USB2.0 cable 2.5m
• Power:-Direct power from the USB2.0 bus
• Driver:-DirectX driver for third party video applications
• Optical Interface:-C/CS mount

Operational Requirement

• Temperature:-0 ~ 60 C
• Humidity:-20% ~ 90% RH
• Compliance:-CE

Digital Video Review

• Resolution:
• 1280 x 1024 pixels-10 frames/second
• 800 x 600 pixels:-15 frames/second
• 640 x 480 pixels:-25 frames/second

Digital Still Image

• Image:-1280 x 1024
• 24 bit BMP: 1.4MB
• 24 bit JPG: 100KB

Dimensions

• 86mm (L) x 65mm (W) x 37mm (D)

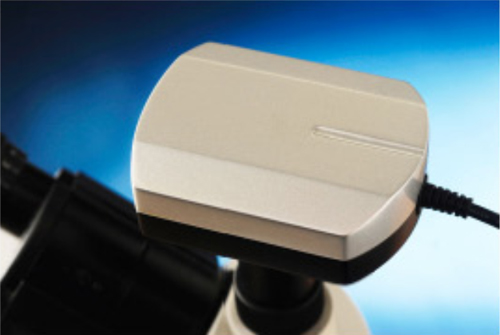

This TCA-1.3 digital USB camera comes with IR filter and 2.5m USB cable
