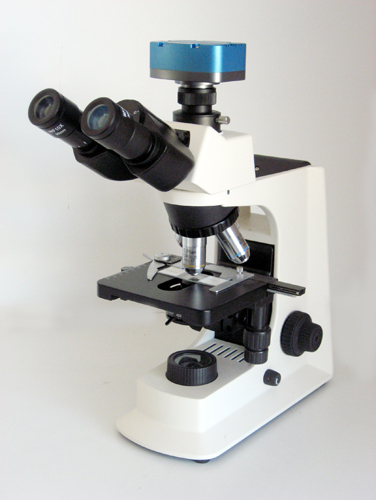

BK1000TR Trinocular Microscope with Digital Camera

BK1000 trinocular microscope is THE ideal instrument for use in farm compost and compost tea operations.

The camera is very useful for record purposes and for communicating with soil labs, colleagues and technical advisors.You have the option of thr standard 1.3 MPixel camera, the 3.0 MPixel camera (preferred by most biological farmers) and the 5.0 MPixel camera.

Magnification range (from 40X to 1000X) is ideal for seeing soil and compost micro organisms. Most farm users and commercial compost makers operate at the 400X magnification level.

This instrument can also be equiped with various accessories, sach as dark condenser, phase contrast condenser, photo attachment and CCD TV attachment, etc.

Specifications:

• Trinocular Head inclined at 30 deg Beam splitter 50/50
• Eyepieces WF10x
• Semi-Plan Achromat Objectives Infinity type
• PL4x, PL10x, PL40x, PL100x(oil)
• Nosepiece reversed 4 positions.
• Co-Axial course and fine focusing knobs
• Co-axial Mechanical Stage with specimen holder
• Condenser Abbe 1.25 with iris diaphragm.
• Illumination variable 6V 20W halogen
• Blue filter, rear carry handle.

Microscope:BK1000T-TCA1.3

Camera:TCA 1.3(1280x1024)

Coupler:BK1000-CTV 0.45x
